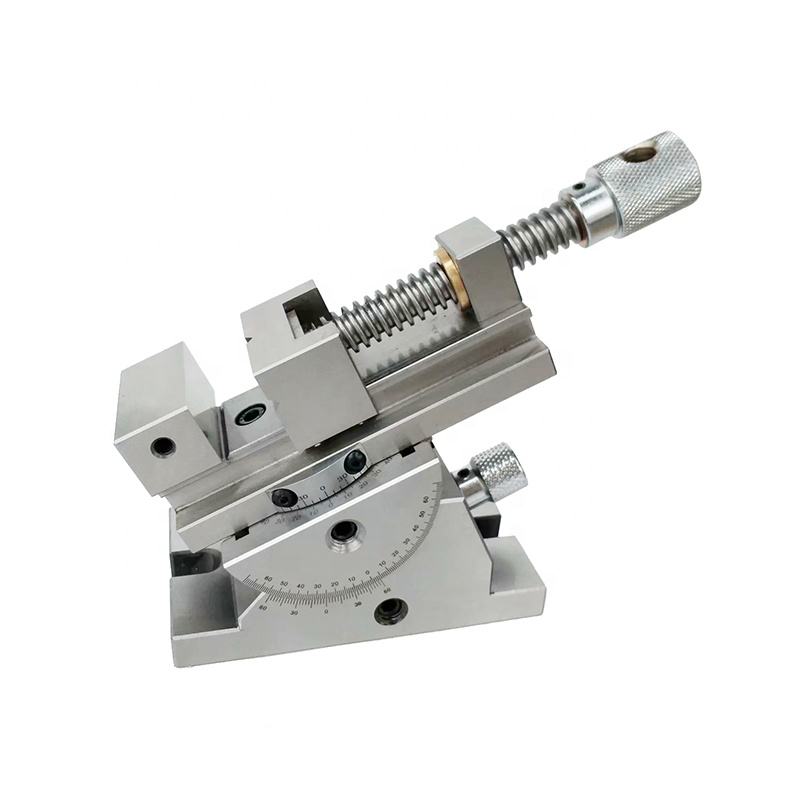

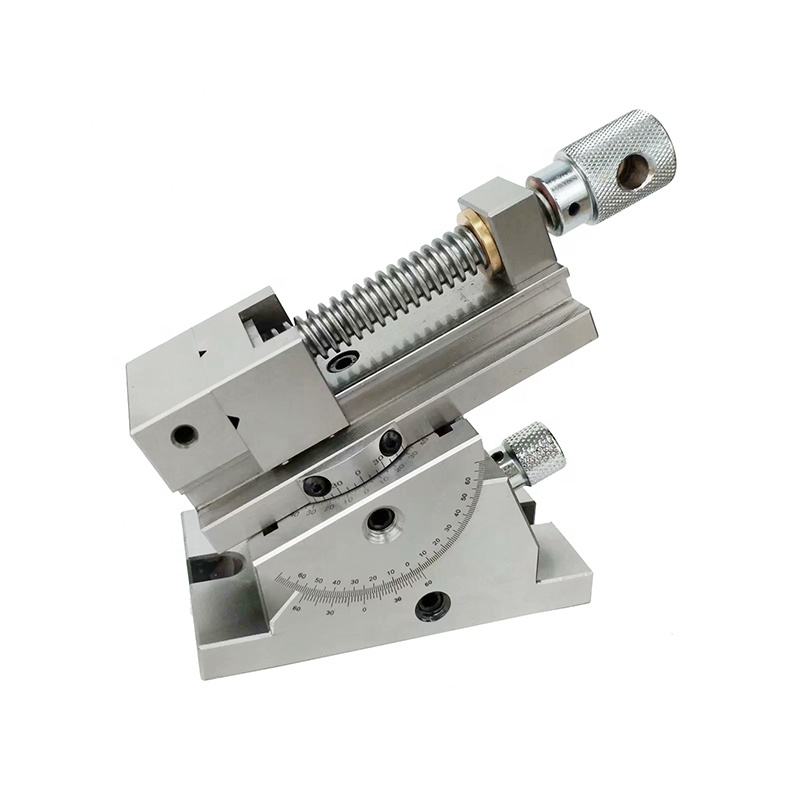

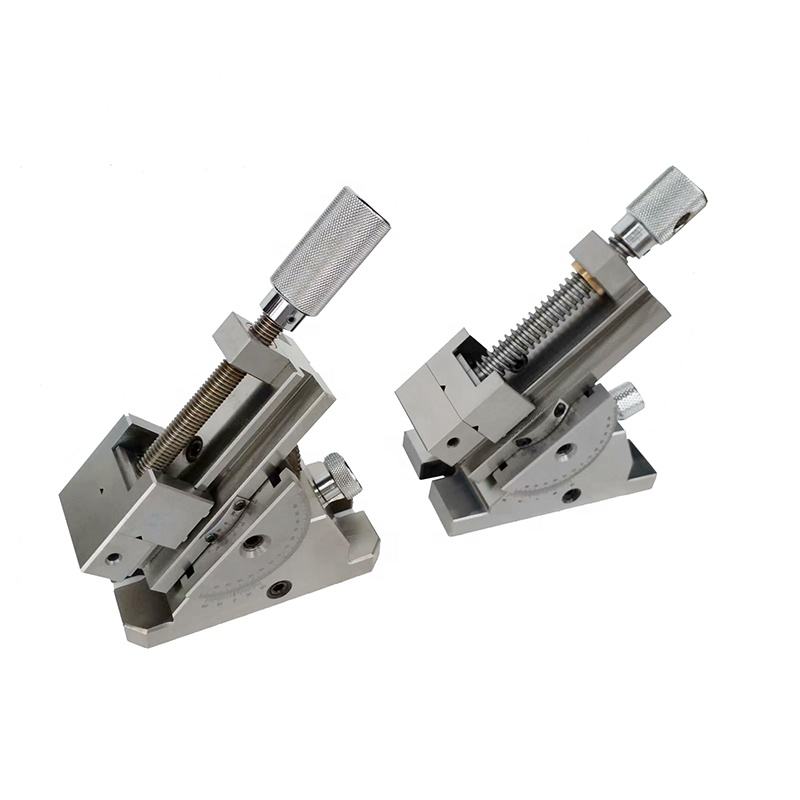

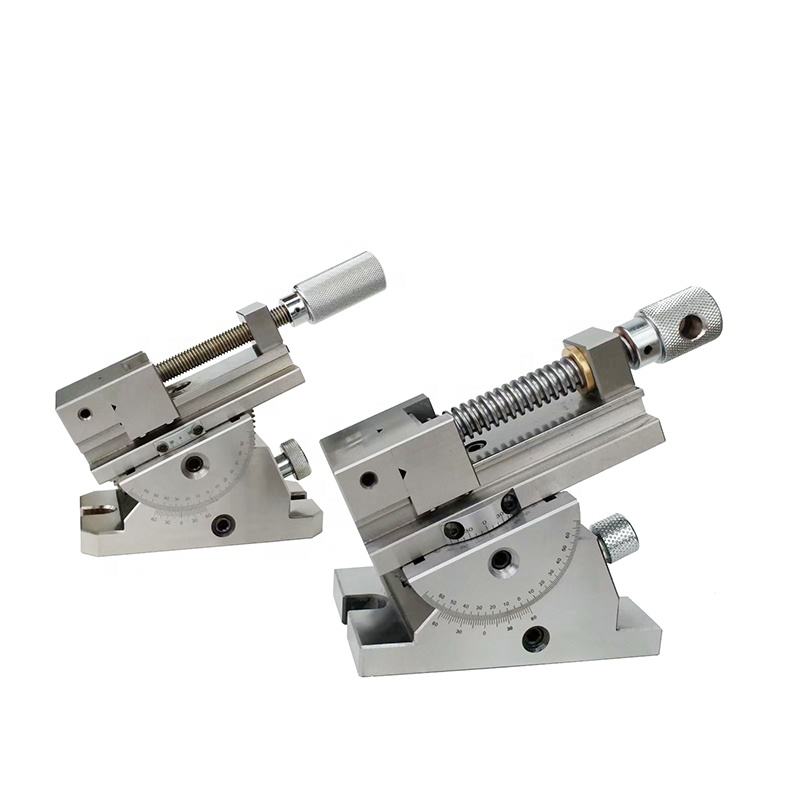

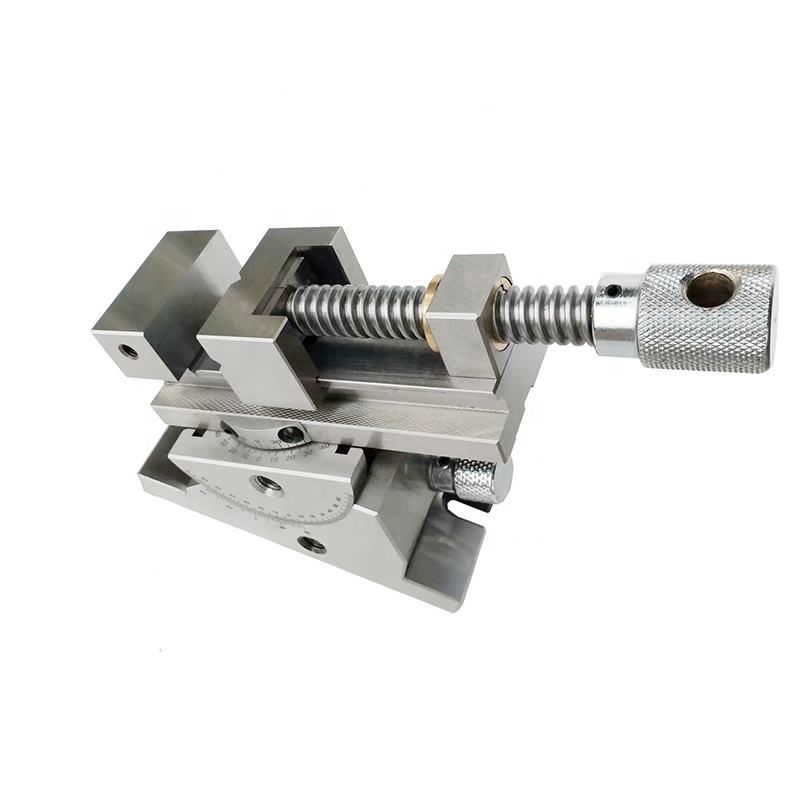

Universal vise
Product Details
Core Benefits – Quick & Clear
- Multi‑Axis Angle Adjustment
Vertical tilt: 0‑50° / Horizontal rotation: 360°. Position the workpiece at compound angles without multiple fixtures or re‑clamping – machine chamfers, undercuts, and inclined features in one setup. - High Rigidity & Stable Clamping
High‑strength stainless steel, hardened to HRC 58°, minimizes vibration and ensures consistent machining accuracy even under demanding cutting conditions. Eliminates deflection. - Precise Positioning – 0.01 mm Accuracy

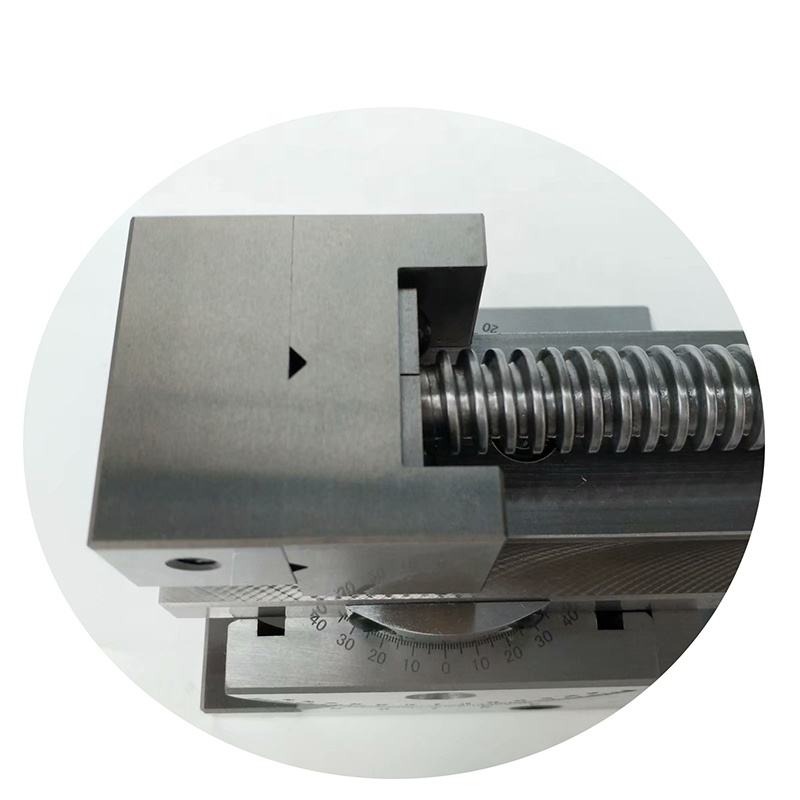

Integrated angle scales and secure locking mechanism provide repeatable angular positioning with 0.01 mm linear accuracy. Ideal for high‑precision work. - Compact & Interference‑Free
130 mm length, 23.5 mm jaw height – fits easily on 5‑axis trunnions, rotary tables, or tight machine work envelopes. Compact design enhances tool accessibility. - Versatile Jaw Opening
Jaw opening 0‑70 mm, jaw width 50 mm – handles small blocks, round stock, and medium components. Suitable for both standard VMCs and advanced multi‑axis machining.
Key Use Cases
- Aerospace & Medical Prototyping – Machine complex brackets, implants, or housings with inclined holes and angled surfaces – one vise, multiple angles, one setup.
- Precision Engineering & Toolrooms – Quickly switch between vertical and horizontal workholding orientations without changing fixtures – ideal for R&D and small‑batch production.
- Multi‑Axis Machining Centers – Mount on a 5‑axis trunnion for even greater flexibility – the universal vise adds compound angle capability to any mill.
Unlock Multi‑Angle Precision – One Vise, Infinite Positions
The JIYAN Universal Milling Vise combines 0‑50° tilt, 360° rotation, and 0.01 mm accuracy – fewer setups, faster changeovers, and zero compromise on rigidity.
Description
| Parameter | Value |
|---|---|
| Product Type | Universal Milling Vise |
| Length | 130 mm |
| Jaw Width | 50 mm |
| Jaw Opening | 0 – 70 mm |
| Jaw Height | 23.5 mm |
| Material | Stainless Steel (HRC 58°) |
| Vertical Tilt Angle | 0 – 50° |
| Horizontal Rotation | 360° |
| Positioning Accuracy | 0.01 mm |
| Weight | 7 kg |
H18-LD Zero Point Pull Stud
H18-LD Zero Point Pull Stud – For H18 System
A precision ground pull stud (25×50 mm) hardened alloy steel construction, ±0.005 mm repeatability, and 55 kN pull‑down force capacity. Fully compatible with all JIYAN H18 series zero point clamping systems. Ideal for pallet mounting, fixture registration, and quick change workholding.
JY9652-180 JIYAN Dual 52/96mm Zero-Point Pallet
Product Details
MDJY 9652-180 Dual 52/96mm Zero-Point Pallet
The MDJY 9652-180 solves a common problem in shops running more than one zero-point standard: pallets that only fit one grid. This 180 × 180 × 27 mm pallet is machined with both the 52 mm and the 96 mm pull-stud patterns, so the same pallet locks into either a 52 mm or a 96 mm receiver.
That flexibility is valuable when you are transitioning between grid sizes, running subcontract work on customers’ machines, or running different machining centers on different grids.
Specifications
| Item | Value |
|---|---|
| Model | JY9652-180 |
| Dimensions | 180 × 180 × 27 mm |
| Repeatability | ±0.005 mm |
| Weight | 6.3 KG |
| Pull-stud pattern | 52 mm and 96 mm dual pattern |
How to order
From $610 USD per unit. MOQ 1 pc; FOB Dongguan or DDP to the US. Lead time 7–21 days. CAD on request — email sales@jiyanvise.com.
L52 Zero-Point Tower for CNC Workholding
The MDJY L52 is listed as a zero-point tower workholding product for CNC setups. Confirm its mounting interface, dimensions, fixture layout and compatible zero-point components against the latest product drawing before ordering.
Product Details
## MDJY L52 Zero-Point Tower for CNC Workholding
The L52 is presented in the JIYAN product range as a zero-point tower workholding solution. Tower-style fixtures can help organize multiple workholding positions in a compact setup, depending on the actual configuration and machine requirements.
### Before Selecting the L52
– Confirm the overall dimensions and mounting pattern
– Verify the zero-point interface and compatible components
– Check machine travel, tool access and fixture clearance
– Request the current drawing to confirm the supported configuration
MDJY 96-L176 MDJY L-Bridge Plate with Quick-Change Zero-Point Pallet
Product Details
The MDJY 96-L176 is a MDJY 96 mm L-bridge plate + quick-change zero-point pallet combo, built for CNC 4th-axis indexing tables, rotary tables and tombstone workholding where the part must be raised clear of the table to machine side faces and multiple angles in a single setup. Its one-piece, high-rigidity L-shaped body locates through the MDJY 96 mm zero-point interface (repeatability 0.005 mm), so a pallet, vise or chuck drops on and is instantly referenced with no re-indication.
Key Features
- Bundles the MDJY 96-176 zero-point quick-change pallet (included) for instant drop-on mounting — buy the bridge and the pallet as one kit.
- One-piece high-rigidity L-structure — precision-stable, low deflection, fast to install.
- Raises the workpiece to clear table/interference, enabling side machining, multi-angle milling and multi-station clamping in one clamping setup.
- Compatible with the MDJYAN 96 mm zero-point quick-change system and standard fixtures.
- 96 mm hole-pitch pull-stud pattern — works with self-centering vises, 3-jaw chucks and ER-collet fixtures that carry the 96 mm stud pattern.
- Ships with 4 pull studs so it is ready to bolt down and run.
Technical Specifications
| Model | JY96-L176 |
|---|---|
| Type | 4-Axis L-Bridge Plate + Zero-Point Pallet |
| Zero-Point Pitch | 96 mm |
| Dimensions (L × W × H) | 226 × 210 × 150 mm |
| Repeatability | Inherits JYAN 96 mm zero-point system (0.005 mm) |
| Weight | 18.5 kg (est.) |
| Pull Stud | 96 mm zero-point (4 pull studs included) |
| Body Material | Aluminium alloy + hardened steel locators |
| Included Pallet | JY96-176 zero-point quick-change pallet |
Applications
- CNC 4th-axis indexing tables and rotary tables needing elevated, interference-free setups.
- Side machining, multi-angle milling and multi-station clamping — one setup, several faces.
- Tombstones / workholding towers where height clearance and reach matter.
- Bridge to 96 mm zero-point pallets, self-centering vises and chucks for fast re-seating.
JY168-250 MDJY Pneumatic Self-Centering Vise (Hard Jaw)
A heavy‑duty MDJY self‑centering vise (292×168×99 mm) with 0–205 mm external / 45–250 mm internal clamping range, 0.01mm repeatability, 150Nm torque, and H18 zero point locating holes. Ideal for large CNC machining, zero point pallet systems, and oversized workpiece clamping from JIYANVISE.
Product Details
Specifications
| Parameter | Value |
|---|---|
| Model | JY168‑250 |
| Type | Self‑centering vise, hard jaw |
| Dimensions (L × W × H) | 292 × 168 × 99 mm |
| Clamping range (external / internal) | 0–205 mm / 45–250 mm |
| Repeat clamping accuracy | 0.01mm |
| Max. torque | 150Nm |
| Jaw type | Split type hardened steel jaws |
| Mounting options | H18 2‑in‑1 zero point locating holes |
Key Features
MDJY precision engineering – designed and manufactured to exacting standards
Self‑centering design – automatically centers the workpiece for consistent positioning
Dual clamping modes – supports both external clamping (0–205 mm) and internal clamping (45–250 mm)
Extended clamping range – 250 mm internal capacity handles very large workpieces
High precision – 0.01mm repeatability for tight tolerance machining
High torque capacity – 150Nm clamping torque for secure workholding
Split hardened jaws – durable, wear‑resistant, and replaceable
Zero point ready – H18 2‑in‑1 locating holes for direct mounting on H18 zero point pallet systems
Heavy‑duty construction – 292×168×99 mm robust design for maximum rigidity
Application Scenarios
Large CNC milling and machining centers – handles oversized workpieces with stability
Automated pallet systems – H18 zero point compatibility enables quick change on pallet systems
Heavy cutting operations – 150Nm torque and rigid construction resist vibration in aggressive roughing
High‑mix / low‑volume production – quick jaw changes for different part sizes
4th/5th axis machining – heavy‑duty design for rotary table applications
Large part clamping – 250 mm internal capacity accommodates oversized workpieces
Precision machining – 0.01mm repeatability for consistent part quality
Why Choose MD
Self‑centering advantage – eliminates manual centering, reduces setup time
Dual clamping flexibility – one vise handles both external and internal workpieces
Extended clamping range – 250 mm internal capacity for very large parts
High precision – 0.01mm repeatability ensures consistent part quality
Zero point ready – H18 locating holes allow direct mounting on zero point pallets
Split jaw design – easy replacement and customization for different part geometries
Heavy‑duty construction – robust design for large workpiece clamping
Precision ground surfaces – verified for flatness and parallelism
Hardened steel body – durable construction for high‑cycle production
MD reliability – trusted by CNC professionals worldwide
